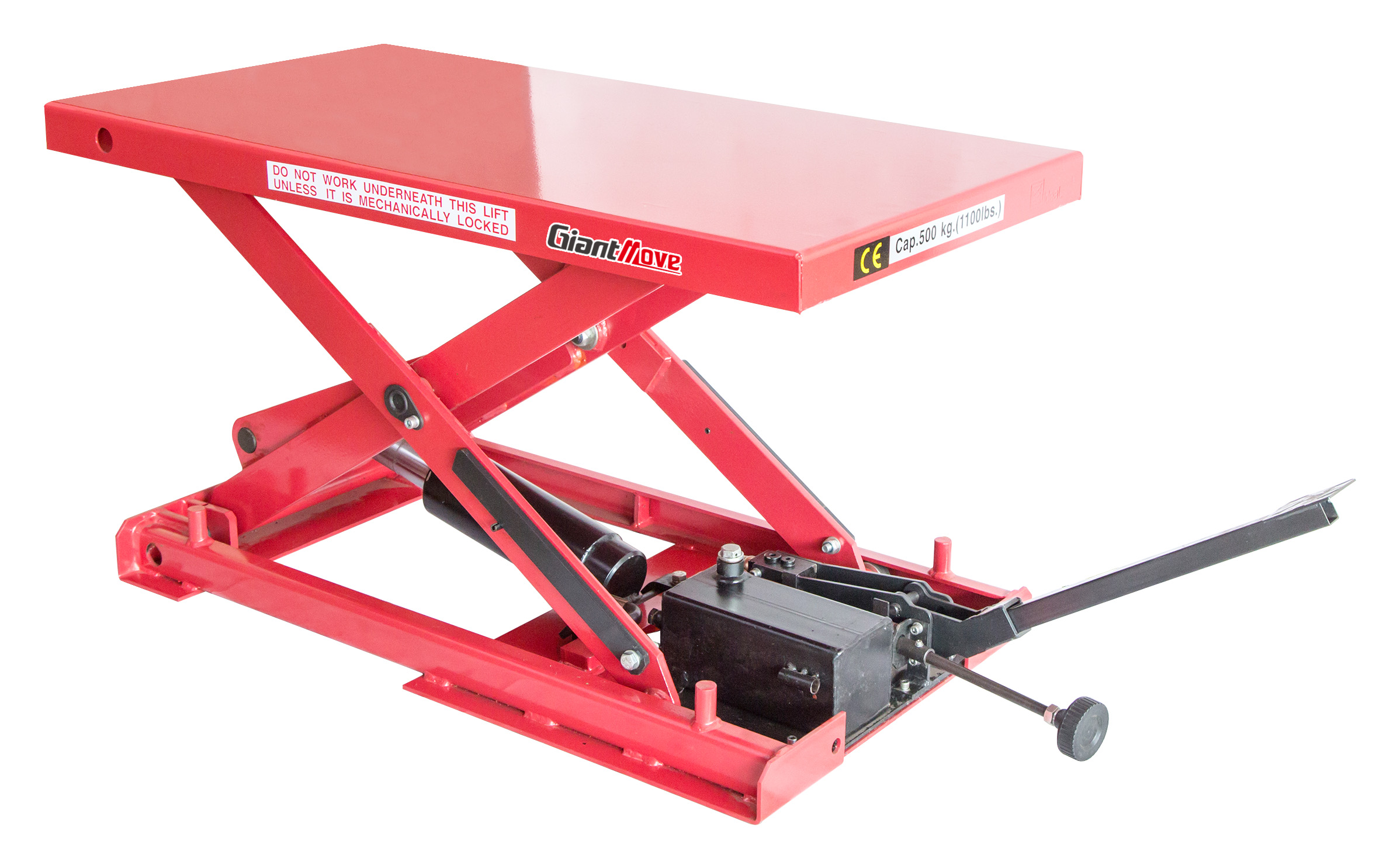

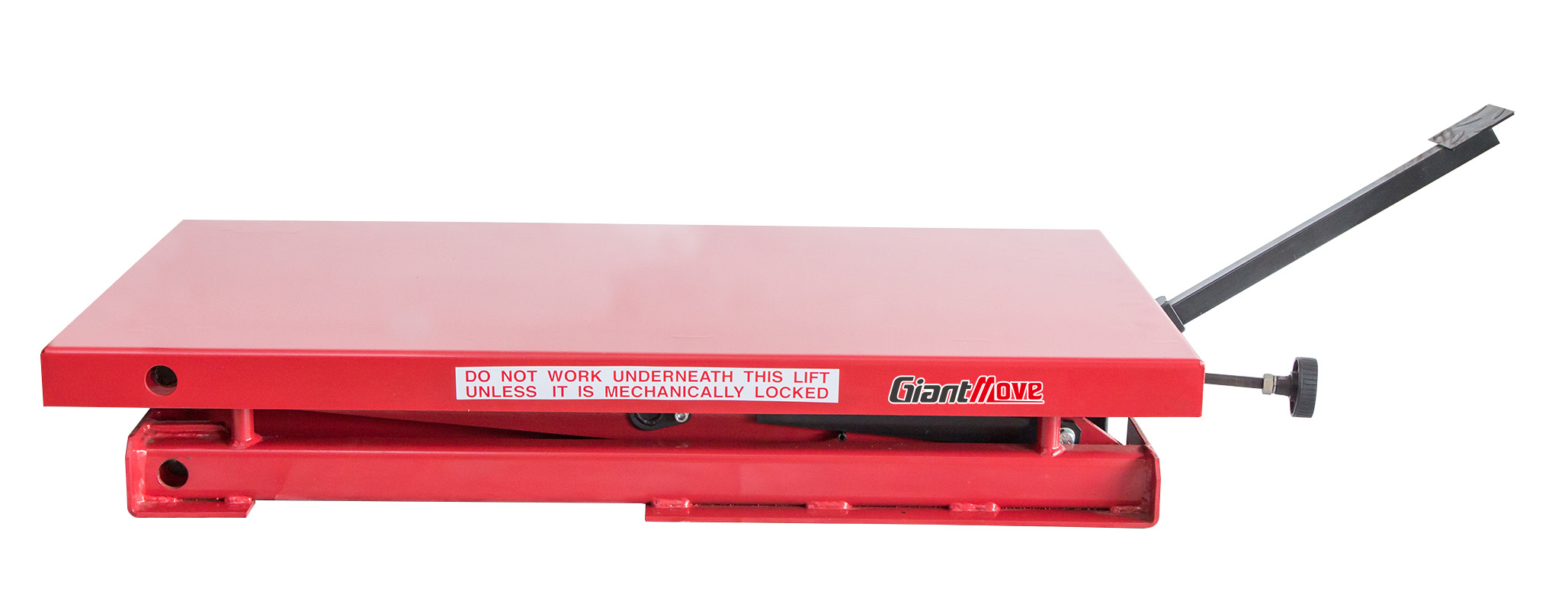

Stationary Foot Pump Scissor Table MK-B MK-B

Stationary Foot Pump Scissor Table【MK-BSeries】

※ Heavy duty design

※ New design to meet norm EN1570.

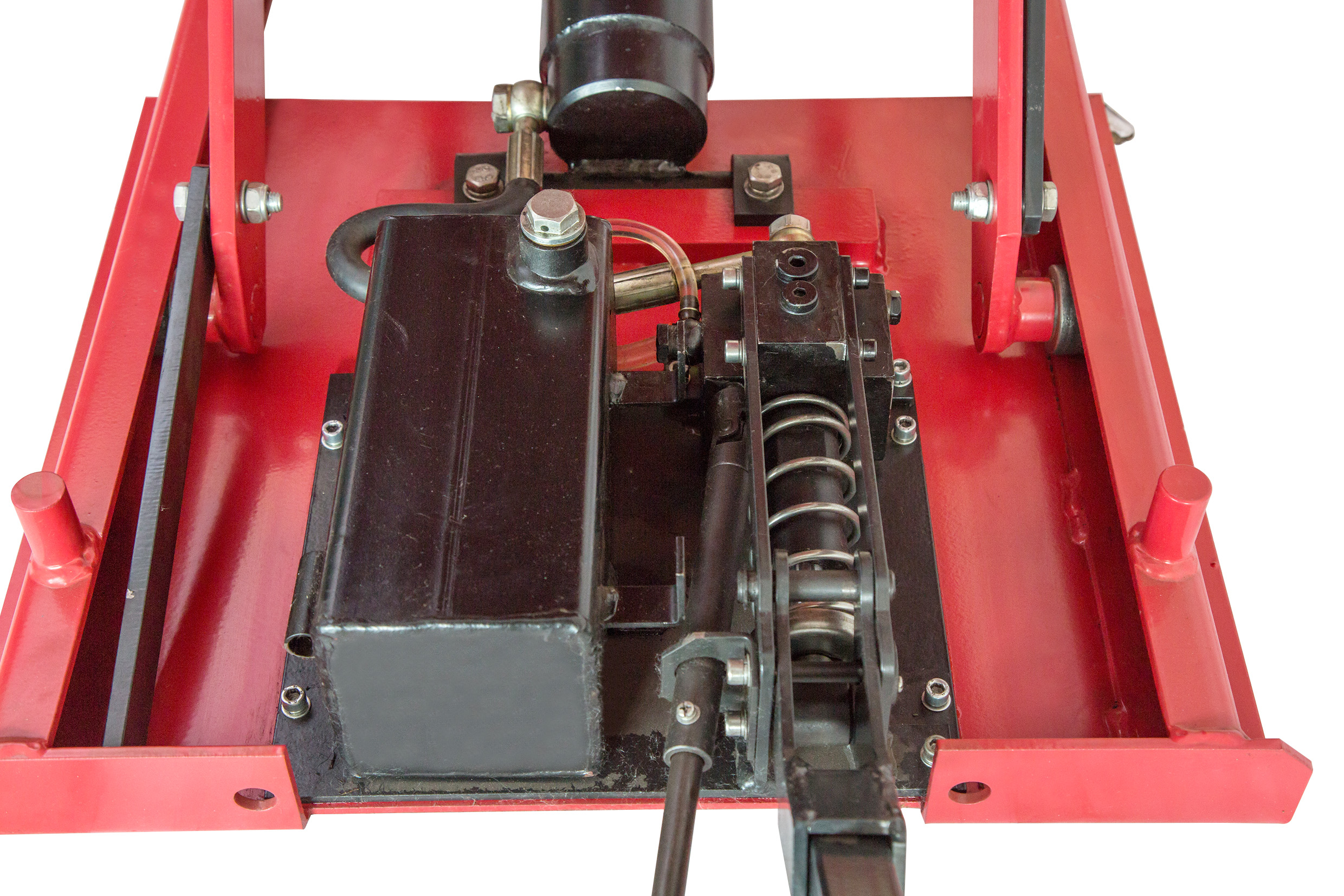

※ Foot operated lifting, hand operated lowering.

※ Suitable for place without or far away from electricity.

※ Widely load range from 250 kg to 1000 kg.

Model	MK-B25C	MK-B50C	MK-B75C	MK-B100C	MK-B30D
Capacity (Kg)	250	500	750	1000	300
Platform Size LXW (mm)	830x500	1010x520	1010x520	1010x520	1010x520
Base Frame Size LXW (mm)	820X500	913X520	913X520	913X520	913X520
Lowered Height (mm)	152	152	152	160	240
Raised Height (mm)	715	800	800	800	1380
Foot Pedal Without Rated Load	30	58	78	80	60
Foot Pedal with Rated Load	50	62	82	85	63
Net Weight (Kg)	73	115	115	122	135
